It happens to the best of us: you arrive home after a long trip, reach for your remote, and realize the power is out or the battery is dead. Standing in the driveway, wondering how to open a garage door from the outside, can be incredibly stressful, especially when you are tired or in a hurry. However, with the right knowledge and a few simple steps, you can bypass the electronic opener and regain access to your home safely. This guide provides a comprehensive, step-by-step tutorial to help you solve this problem quickly and securely.

How To Open A Garage Door From The Outside Using the Emergency Release Kit

The most common and effective way to open a garage door from the outside without power or a remote is by using the emergency release lock. Most modern sectional garage doors are equipped with this feature, which is designed specifically for lockout situations.

This mechanism allows you to disengage the door from the automatic opener carriage, turning the heavy door into a manual one.

Identifying the Lock Type

Before you begin, inspect your garage door. Look near the top center or slightly to the side for a small keyhole.

• T-Handle Lock: A circular lock with a T-shaped handle that you turn.
• Slide Lock (External): Less common for external use, but some doors have a key-activated slide bar.

Pro Tip: If you cannot find a keyhole on the exterior of the door, your garage door may not have an external emergency release installed. In this case, you will need to use an external keypad (if installed) or contact a professional locksmith or garage door technician to avoid damaging the door.

Step-by-Step Guide: Using the External Emergency Release

Follow these concrete steps to manually override your garage door system. This process typically takes less than 2 minutes.

Tools Needed:

• The emergency release key (usually provided when the door was installed).
• Optional: A flathead screwdriver (only if the lock is stuck).

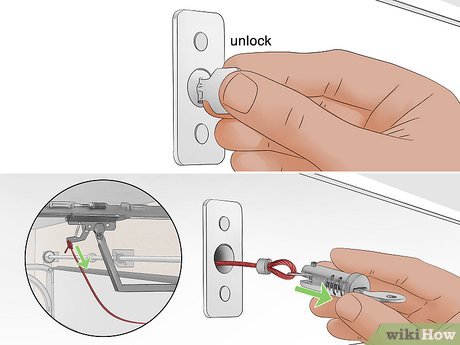

Step 1: Insert the Key Insert the emergency key into the lock cylinder on the outside of the door. Turn the key 90 degrees (usually counter-clockwise) to disengage the locking mechanism. You should hear a distinct click as the internal lock bar retracts.

Step 2: Pull the Release Cable Once the lock is turned, pull the handle or the attached cable outward firmly. This action pulls the emergency release cord connected to the opener carriage inside the garage.

• Detail: You need to pull with enough force to trigger the carriage release—approximately 5 to 10 pounds of pressure.

Step 3: Disengage the Opener By pulling the external handle, you have disconnected the door from the motorized trolley. The door is now free to move independently of the opener chain or belt.

Step 4: Lift the Door Manually Grip the bottom handle of the garage door (or the bottom edge if no handle exists). Lift the door upward smoothly.

• Safety Note: A standard single-car garage door weighs between 120 to 150 pounds, while a double-car door can weigh up to 250 pounds. Ensure you have a firm grip and keep your fingers away from the joints (sections) to avoid pinching.
• Lift the door until it is fully open and secure it with a C-clamp or a vice grip on the track below the bottom roller if you need to keep it open for an extended period.

How to Open a Garage Door Manually Without Power?

If you have a side entry door and can access the inside of the garage, the process is slightly different but follows the same mechanical principle. This is a common scenario during power outages.

1. Locate the Red Cord: Look for the red emergency release cord hanging from the metal rail (the trolley) that connects to the top bracket of the door.
2. Pull Down and Away: Pull the red handle down and towards the motor unit (or away from the door, depending on the model). This disconnects the trolley from the belt/chain.
3. Lift the Door: Once the carriage is disconnected, the door should lift easily if the springs are balanced correctly.

Troubleshooting Heavy Doors: If the door feels incredibly heavy (like lifting 200+ lbs directly), your torsion springs might be broken.

• Warning: Do not attempt to force a heavy door. A broken spring stores dangerous amounts of tension. According to the Wikipedia entry on Garage Doors, the springs are under extreme tension and are responsible for counterbalancing the door’s weight. Attempting to lift a door with a broken spring can cause severe injury or further damage to the property. Call a professional immediately.

Comparison: Methods to Open Garage Door Externally

To help you choose the best approach for your situation, refer to the table below.

Frequently Asked Questions (FAQ)

1. Can I open my garage door from the outside if I don’t have a key? If your door has an external lock but you lost the key, you have two options. First, check if you have a spare key hidden somewhere. Second, you can call a locksmith to drill out the lock cylinder (which is cheaper than replacing the whole door) or try to manipulate the lock if it is a simple wafer tumbler. However, for most modern doors, drilling the cylinder is the safest non-destructive method to regain entry.

2. Is it safe to open a garage door manually if the spring is broken? No. If you suspect a broken spring (the door is very heavy or you see a gap in the spring above the door), do not attempt to lift it manually. The springs counterbalance the weight; without them, the door acts as a dead weight of hundreds of pounds. This can cause the door to crash down or cause severe back injuries. Always hire a professional for spring repairs.

3. Why won’t my garage door open even with the emergency release pulled? If you have disengaged the opener and the door still won’t move, the issue is likely mechanical.

• Frozen Seals: In winter, the bottom rubber seal may be frozen to the concrete. Use a hair dryer or hot water to melt the ice.
• Obstructed Tracks: Check for debris, rocks, or bent tracks blocking the rollers.
• Locked Handle: Ensure the manual handle lock (if you have one) isn’t engaged.

4. How much does it cost to install an emergency release lock? If your current door lacks an external lock, a professional can usually install an emergency release kit for between $50 and $150, including parts and labor. This is a worthwhile investment for the security and convenience it provides during lockouts.

Conclusion

Knowing how to open a garage door from the outside is an essential skill for every homeowner. Whether you are dealing with a power outage, a dead remote battery, or a simple lockout, the emergency release kit is your best tool. Remember to always prioritize safety, especially regarding the heavy weight of the door and the tension of the springs.
