Introduction

Is your garage door stuck halfway, or did you just move into a new home with an older opener and no instructions? It is a frustrating situation that many homeowners face, but you are not alone. Finding the right Sears Craftsman Garage Door Opener 1/2 HP Manual can feel like searching for a needle in a haystack, especially since Sears has undergone significant changes in recent years.

This guide is designed to help you locate your specific manual, understand your unit’s capabilities, and troubleshoot common issues without calling a professional immediately. We will walk you through everything from identifying your model number to performing basic maintenance, ensuring your garage door operates safely and efficiently.

Why You Need the Right Manual for Your 1/2 HP Unit

The 1/2 horsepower (HP) motor is one of the most common configurations for residential garage doors. It provides enough power to lift standard single-car and double-car wooden or steel doors. However, “Craftsman” covers decades of production, and not all manuals are interchangeable.

Using the wrong manual can lead to incorrect programming of remote controls, improper limit settings, or even safety hazards. According to the Consumer Product Safety Commission (CPSC), proper installation and maintenance of garage door openers are critical to preventing entrapment injuries. Having the correct documentation ensures you adhere to the manufacturer’s safety standards.

How to Identify Your Specific Craftsman Model

Before downloading any PDF, you must identify your exact model number. Craftsman openers manufactured by different companies (such as Chamberlain, LiftMaster, or Stanley) over the years have different internal mechanisms.

Step-by-Step Identification Process

1. Locate the Label: Look for a sticker or label on the back or side of the motor unit. It is often near the light lens or on the rear panel.
2. Find the Model Number: The model number usually starts with “315,” “139,” or “C.” For example, 315.25010 or 139.53990.
3. Note the Serial Number: While less critical for finding the manual, the serial number helps determine the manufacturing date.
4. Check the Remote Color: Older Craftsman remotes were often yellow, while newer ones are black or gray. This can give you a clue about the era of your opener.

Pro Tip: If the label is faded or missing, take a clear photo of the motor unit’s circuit board. The board often has part numbers printed directly on it that can help identify the generation.

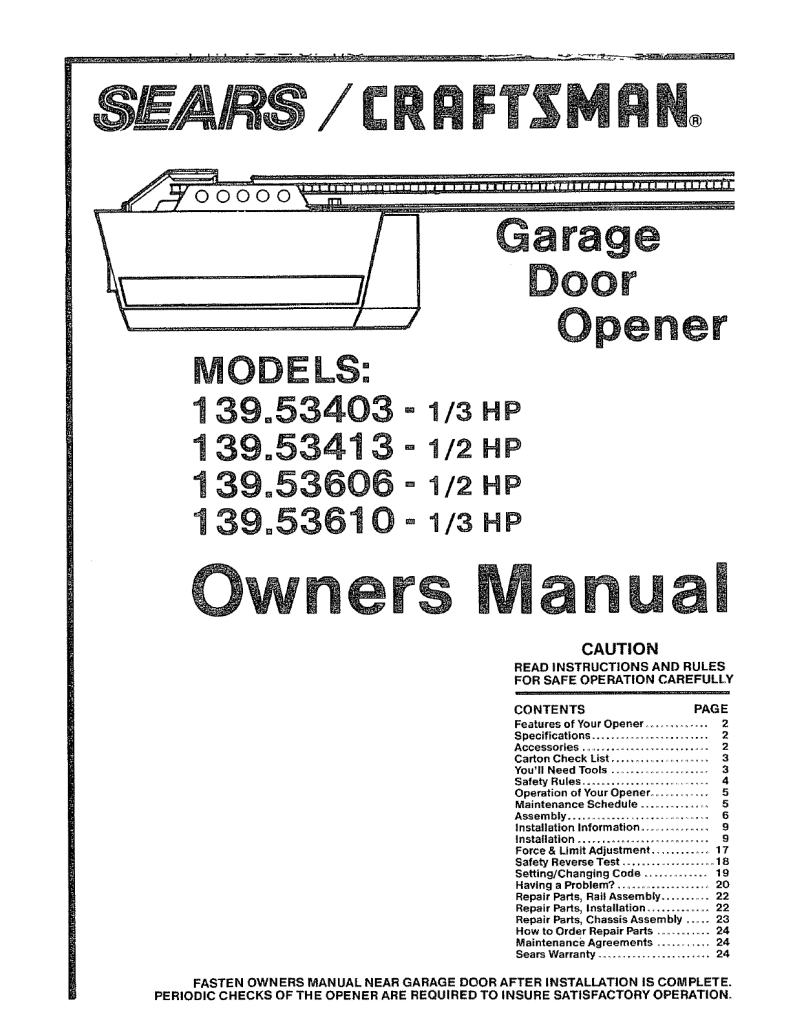

Where to Find the Sears Craftsman Garage Door Opener 1/2 HP Manual

Once you have your model number, you have several reliable options to retrieve the manual.

1. Official Manufacturer Websites

Since Sears sold the Craftsman brand, many manuals are now hosted by the actual manufacturers.

• Chamberlain/LiftMaster: Many Craftsman openers are rebranded Chamberlain units. Visit Chamberlain’s Support Page and enter your model number.
• Stanley Access Technologies: Some older models were made by Stanley. Check their archival support sections.

2. Third-Party Manual Repositories

Websites like ManualsLib or JustAnswer often host scanned copies of older manuals. These are useful for models discontinued before 2010.

3. Wikipedia for Historical Context

For a broader understanding of how garage door technology has evolved, including the shift from chain-drive to belt-drive systems in Craftsman products, you can refer to general industry history on Wikipedia’s Garage Door Opener page. This context helps you understand why certain features exist in your manual.

Common Features of the 1/2 HP Craftsman Opener

Understanding your machine’s features helps you utilize the manual effectively. Most 1/2 HP Craftsman units include:

• Chain or Belt Drive: Chain drives are louder but durable; belt drives are quieter.
• Safety Reverse System: Sensors that stop the door if an object is detected.
• Battery Backup: Newer models include a backup battery for power outages.
• Wi-Fi Connectivity: Modern units allow smartphone control via apps like myQ.

Troubleshooting Common Issues Using Your Manual

Even with the best maintenance, issues arise. Here are solutions to frequent problems, guided by standard manual instructions.

Issue 1: The Door Reverses Before Closing

This is often a sensor alignment issue.

1. Check the safety eyes on both sides of the door track.
2. Ensure nothing is blocking the beam.
3. Clean the lenses with a soft cloth.
4. Adjust the brackets until the indicator lights are solid (not blinking).

Issue 2: Remote Control Not Working

1. Replace the battery in the remote (usually CR2032).
2. Reprogram the remote using the “Learn” button on the motor unit.
3. Check if the antenna wire on the motor is hanging down and unobstructed.

Issue 3: Motor Runs but Door Doesn’t Move

1. Inspect the trolley and carriage assembly.
2. Check for a broken gear or sprocket inside the motor head. Note: This often requires a professional repair kit.
3. Ensure the emergency release cord is fully engaged in the locked position.

Maintenance Tips for Longevity

Regular maintenance can extend the life of your 1/2 HP opener by 5–10 years.

• Lubricate Moving Parts: Use a silicone-based lubricant on the chain, rollers, and hinges every six months. Avoid WD-40 as it attracts dust.
• Test Safety Features: Monthly, place a 2×4 piece of wood on the floor under the door. Close the door. It should reverse immediately upon contact.
• Tighten Hardware: Vibration can loosen bolts on the tracks and motor mount. Check them annually.

FAQ Section

Q1: Can I use a universal remote with my Sears Craftsman opener?

A: Yes, most modern universal remotes are compatible with Craftsman openers, especially those made after 1993. You will need to program the remote using the dip switches or the “Learn” button method described in your manual.

Q2: My manual says “Force Adjustment.” What does this mean?

A: Force adjustment controls how much power the motor uses to open and close the door. If set too high, it can damage the door or injure someone. If set too low, the door may reverse prematurely. Always adjust in small increments and test frequently.

Q3: Where can I buy replacement parts for an old Sears Craftsman model?

A: Replacement parts are available through Amazon, eBay, and specialized garage door supply websites. Search using your specific model number. For critical safety components like springs, always consult a professional.

Q4: Is it safe to repair the garage door spring myself?

A: No. Torsion springs are under extreme tension and can cause severe injury or death if handled incorrectly. Always hire a certified technician for spring repairs. The manual typically includes a warning against DIY spring repair.

Q5: Why does my Craftsman opener make a grinding noise?

A: A grinding noise usually indicates worn plastic gears inside the motor unit. This is a common issue in older 1/2 HP models. You can purchase a gear and sprocket kit to replace them, which is a moderate-difficulty DIY project.

Q6: How do I reset my Craftsman Garage Door Opener?

A: To reset the memory, locate the “Learn” button on the motor unit. Press and hold it for 6–10 seconds until the indicator light turns off. This erases all programmed remotes and keypads, allowing you to start fresh.

Conclusion

Finding and utilizing the correct Sears Craftsman Garage Door Opener 1/2 HP Manual is the first step toward ensuring your home’s security and convenience. Whether you are troubleshooting a misaligned sensor or simply wanting to program a new remote, having the right information at your fingertips saves time and money.

Remember, regular maintenance and adherence to safety guidelines are key to prolonging the life of your opener. If you found this guide helpful, please share it with friends or family who might be struggling with their own garage door issues. A well-functioning garage door is a happy garage door!

Disclaimer: This article is for informational purposes only. Always prioritize safety and consult a professional for complex repairs, especially involving springs or electrical components.
